Render Word documents as HTML, PDF, and image files Leave feedback

GroupDocs.Viewer for Java allows you to render your Microsoft Word documents in HTML, PDF, PNG, and JPEG formats. You do not need to use Microsoft Word or other word processors to load and view Word documents within your Java application (web or desktop).

To start using the GroupDocs.Viewer API, create a Viewer class instance. Pass a document you want to view to the class constructor. You can load the document from a file or stream. Call one of the Viewer.view method overloads to convert the document to HTML, PDF, or image format. These methods allow you to render the entire document or specific pages.

View Word files online View demos and examples on GitHub

GroupDocs.Viewer supports the following Word Processing file formats:

• Microsoft Word Document (.DOCX)
• Microsoft Word 97-2003 Document (.DOC)
• Microsoft Word Macro-Enabled Document (.DOCM)
• Microsoft Word 97-2003 Template (.DOT)
• Microsoft Word Macro-Enabled Template (.DOTM)
• Microsoft Word Template (.DOTX)
• OpenDocument Text (.ODT)
• OpenDocument Text Template (.OTT)
• Rich Text Document (.RTF)
• Plain Text Document (.TXT)

Create an HtmlViewOptions class instance and pass it to the Viewer.view method to convert a Word file to HTML. The HtmlViewOptions class properties allow you to control the conversion process. For instance, you can embed all external resources in the generated HTML file, minify the output file, and optimize it for printing. Refer to the following documentation section for details: Rendering to HTML.

To save all elements of an HTML page (including text, graphics, and stylesheets) into a single file, call the HtmlViewOptions.forEmbeddedResources method and specify the output file name.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.HtmlViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx")) {
    // Create an HTML files.
    // {0} is replaced with the current page number in the file name.
    HtmlViewOptions viewOptions = HtmlViewOptions.forEmbeddedResources("page_{0}.html");
    viewer.view(viewOptions);
}

The following image demonstrates the result:

If you want to store an HTML file and additional resource files (such as fonts, images, and stylesheets) separately, call the HtmlViewOptions.forExternalResources method and pass the following parameters:

• The output file path format
• The path format for the folder with external resources
• The resource URL format

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.HtmlViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx")) {
   // Create an HTML file for each page.
   // Specify the HTML file names and location of external resources.
   // {0} and {1} are replaced with the current page number and resource name, respectively.
   HtmlViewOptions viewOptions = HtmlViewOptions.forExternalResources("page_{0}.html", "page_{0}/resource_{0}_{1}", "page_{0}/resource_{0}_{1}");
   viewer.view(viewOptions);
}

The image below demonstrates the result. External resources are placed in a separate folder.

Create a PdfViewOptions class instance and pass it to the Viewer.view method to convert a Word file to PDF. The PdfViewOptions class properties allow you to control the conversion process. For instance, you can protect the output PDF file, reorder its pages, and specify the quality of document images. Refer to the following documentation section for details: Rendering to PDF.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.PdfViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx")) {
    // Create a PDF file for the document.
    // Specify the PDF file name.
    PdfViewOptions viewOptions = new PdfViewOptions("output.pdf");
    viewer.view(viewOptions);
}

The following image demonstrates the result:

Create a PngViewOptions class instance and pass it to the Viewer.view method to convert a Word file to PNG. Use the PngViewOptions.setHeight and PngViewOptions.setWidth methods to specify the output image size in pixels.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.PngViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx")) {
    // Create a PNG image for each document page.
    // {0} is replaced with the current page number in the image name.
    PngViewOptions viewOptions = new PngViewOptions("output_{0}.png");
    // Set width and height.
    viewOptions.setWidth(950);
    viewOptions.setHeight(550);
    viewer.view(viewOptions);
}

Create a JpgViewOptions class instance and pass it to the Viewer.view method to convert a Word file to JPEG. Use the JpgViewOptions.setHeight and JpgViewOptions.setWidth methods to specify the output image size in pixels.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.JpgViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx")) {
    // Create a JPG image for each document page.
    // {0} is replaced with the current page number in the image name.
    JpgViewOptions viewOptions = new JpgViewOptions("output_{0}.jpg");
    // Set width and height.
    viewOptions.setWidth(950);
    viewOptions.setHeight(550);
    viewer.view(viewOptions);
}

Use the following methods to specify the size of page margins in the output files when you convert your Word documents to HTML, PDF, and image formats:

• WordProcessingOptions.setTopMargin specifies the distance (in points) between document content and the top edge of the page.
• WordProcessingOptions.setBottomMargin specifies the distance (in points) between document content and the bottom edge of the page.
• WordProcessingOptions.setLeftMargin specifies the distance (in points) between document content and the left edge of the page.
• WordProcessingOptions.setRightMargin specifies the distance (in points) between document content and the right edge of the page.

You can access these methods for the following classes:

• HtmlViewOptions
• PdfViewOptions
• PngViewOptions
• JpgViewOptions

The example below converts a Word document to HTML and specifies page margins for the output file.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.HtmlViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx")) {
    // Create an HTML file for each document page.
    // {0} is replaced with the current page number in the file name.
    HtmlViewOptions viewOptions = HtmlViewOptions.forEmbeddedResources("page_{0}.html");
    // Specify the size of page margins in points.
    viewOptions.getWordProcessingOptions().setTopMargin(72);
    viewOptions.getWordProcessingOptions().setBottomMargin(72);
    viewOptions.getWordProcessingOptions().setLeftMargin(54);
    viewOptions.getWordProcessingOptions().setRightMargin(54);
    viewer.view(viewOptions);
}

GroupDocs.Viewer does not render tracked changes (revisions made to a Word document) by default. If you want to display tracked changes in the output file, use the WordProcessingOptions.setRenderTrackedChanges method for one of the following classes (depending on the output file format):

• HtmlViewOptions
• PdfViewOptions
• PngViewOptions
• JpgViewOptions

The following code example demonstrates how to render a Word document with tracked changes:

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.PdfViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx")) {
    // Convert the document to PDF.
    PdfViewOptions viewOptions = new PdfViewOptions("output.pdf");
    // Enable tracked changes rendering.
    viewOptions.getWordProcessingOptions().setRenderTrackedChanges(true);
    viewer.view(viewOptions);
}

The following image illustrates the result:

Use the ViewOptions.setRenderComments method for a target view to display comments in the output file when you convert your document to HTML, PDF, PNG, or JPEG format.

The code example below renders a Word document with comments to PDF.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.PdfViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx")) {
    // Convert the document to PDF.
    PdfViewOptions viewOptions = new PdfViewOptions("output.pdf");
    // Enable rendering comments.
    viewOptions.setRenderComments(true);
    viewer.view(viewOptions);
}

The following image illustrates the result:

When rendering to HTML or PDF, you can set WordProcessingOptions.setUnlinkTableOfContents() to true to unlink table of contents. For HTML rendering, <a> tags with relative links will be replaced with <span> tags, removing functionality but preserving visual appearance. For PDF rendering, the table of contents will be rendered as plain text without links to document sections.

The code example below renders a Word document with table of contents as a plain text without links.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.HtmlViewOptions;
// ...

try (Viewer viewer = new Viewer("resume.docx"))
{
    // Convert the document to HTML.
    HtmlViewOptions viewOptions = HtmlViewOptions.forEmbeddedResources();
    // Unlink table of contents.
    viewOptions.getWordProcessingOptions().setUnlinkTableOfContents(true);
    viewer.view(viewOptions);
}

The following image illustrates the result:

The most of formats inside the WordProcessing family of formats, like DOC, DOCX, ODT and so on, have the concept of fields, which are processed when the document is opened in some viewer application like Microsoft Word. When the input WordProcessing document is loaded to the GroupDocs.Viewer and saved to the HTML (with embedded or external resources), PDF, PNG, or JPEG output formats, all the fields within the input document are updated while saving, and this mimics the Microsoft Word behavior. But in some scenarios, for example, when field values are incorrect, there is no necessary and even not desirable to update fields.

Starting from the version 25.9 the GroupDocs.Viewer for Java has obtained an ability to disable updating fields while saving the documents. The new public property setUpdateFields of the java.lang.Boolean type was added to the WordProcessingOptions class. By default the value of this property is set to true, so fields are updated, as before. In order to turn fields updating off, please set this property to false. Code sample below shows opening a sample DOCX document and saving to the HTML with embedded resources and PDF formats without updating fields during saving.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.HtmlViewOptions;
import com.groupdocs.viewer.options.PdfViewOptions;
// ...

HtmlViewOptions htmlViewOptions = HtmlViewOptions.forEmbeddedResources();
htmlViewOptions.getWordProcessingOptions().setUpdateFields(false);

PdfViewOptions pdfViewOptions = new PdfViewOptions("output.pdf");
pdfViewOptions.getWordProcessingOptions().setUpdateFields(false);

try (Viewer viewer = new Viewer("resume.docx"))
{
    viewer.view(htmlViewOptions);
    viewer.view(pdfViewOptions);
}

Most of WordProcessing formats like DOC, DOCX, ODT and so on are able to store the scripts, usually written on VBA. When the output format is PDF, PNG, or JPEG, there is no problem at all. But when the output format is HTML, this may lead to the situations when malicious or harmful VBA script(s) from input DOCX, for example, will be translated to the resultant HTML document. Before the version 25.9 the was no possibility for the GroupDocs.Viewer to disable scripts preserving and translation — all the VBA scripts were translated to the JavaScript in HTML. Starting from the version 25.9, for the security purposes script translation is disabled by default — all the links containing JavaScript are replaced with the harmless "javascript:void(0)" string in the resultant HTML markup. But it is possible to enable script translation, as it was present in the GroupDocs.Viewer before, by using a new public property RemoveJavaScript of the java.lang.Boolean type in the HtmlViewOptions class. By default this property has a true value — JavaScript will be removed from the resultant HTML document. For preserving the JavaScript, as it was in the previous versions of the GroupDocs.Viewer, the false value should be assigned to this property. Code sample below shows opening a sample DOCX document and rendering it to the HTML with embedded resources with and without JavaScript.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.HtmlViewOptions;
// ...

HtmlViewOptions htmlViewOptionsWithoutJavaScript = HtmlViewOptions.forEmbeddedResources("without-js-page{0}.html");

HtmlViewOptions htmlViewOptionsWithJavaScript = HtmlViewOptions.forEmbeddedResources("with-js-page{0}.html");
htmlViewOptionsWithJavaScript.setRemoveJavaScript(false);

try (Viewer viewer = new Viewer("Doc-with-VBA.docx"))
{
    viewer.view(htmlViewOptionsWithoutJavaScript);
    viewer.view(htmlViewOptionsWithJavaScript);
}

Before version 26.9, when rendering loaded WordProcessing documents to the raster formats (PNG and JPEG), the horizontal and vertical resolution of the output image was always fixed and equal to 96 DPI (Dots Per Inch). As a result, it was impossible to significantly increase the quality of produced images. To solve this problem, version 26.9 adds two new methods to the WordProcessingOptions class — setHorizontalResolution and setVerticalResolution, both accepting an int value for the horizontal and vertical resolution respectively.

By default their values are 96 DPI — same as in all previous versions of GroupDocs.Viewer. But now you can change these values. The minimum possible value is 72 DPI — even if a lesser number is set, 72 DPI is applied. There is also a maximum possible value — 600 DPI. Even if a larger number is specified, 600 DPI is applied. This is true for both horizontal and vertical resolution.

These two options are valid only when rendering to the PNG and JPEG formats; for other formats they are ignored.

The source code below demonstrates rendering a loaded DOCX file to PNG with both horizontal and vertical resolutions set to 192 DPI, and to JPEG where horizontal resolution stays at the default (96 DPI) and only the vertical resolution is set to 120 DPI.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.JpgViewOptions;
import com.groupdocs.viewer.options.PngViewOptions;
// ...

PngViewOptions pngOpt = new PngViewOptions();
pngOpt.getWordProcessingOptions().setHorizontalResolution(192);
pngOpt.getWordProcessingOptions().setVerticalResolution(192);

JpgViewOptions jpegOpt = new JpgViewOptions();
jpegOpt.getWordProcessingOptions().setVerticalResolution(120);

try (Viewer viewer = new Viewer("sample.docx"))
{
    viewer.view(pngOpt);
    viewer.view(jpegOpt);
}

By default GroupDocs.Viewer renders input WordProcessing documents “as-is”, without any changes. This applies to page numbers as well: when they are present in the original file, they also appear in the output PDF, HTML, PNG, and JPEG, and vice versa. Initially there was no way to forcibly add page numbers to the produced output documents.

This changed in version 26.9. Starting from this version it is possible to apply page numeration to WordProcessing documents. Important note: the input WordProcessing file is not changed in any case regardless of which options are applied. The described feature modifies only the output documents generated by GroupDocs.Viewer from input Word files.

A new property PageNumberLocation was added to the WordProcessingOptions class. It is of the enum type WordsPageNumberLocation, and its default value is NOT_APPLY — this means that by default input WordProcessing documents are rendered as before: when an input document has page numbers, they are present in the output documents, and when it does not — page numbers are absent. When any other value of WordsPageNumberLocation except NOT_APPLY is specified, GroupDocs.Viewer forcibly adds page numbers to the produced output documents. If the original document already had page numbers, they are initially removed from the output documents, and then the new page numbers are added.

The WordsPageNumberLocation enum both forcibly applies page numbers and specifies their position on the page: TOP_LEFT, TOP_CENTER, TOP_RIGHT, BOTTOM_LEFT, BOTTOM_CENTER, BOTTOM_RIGHT.

Page numbers with different locations can be applied to different output formats for the same input WordProcessing document. The code sample below shows applying page numbers in the top left corner to the output PDF and page numbers in the bottom center to the output HTML.

import com.groupdocs.viewer.Viewer;
import com.groupdocs.viewer.options.HtmlViewOptions;
import com.groupdocs.viewer.options.PdfViewOptions;
import com.groupdocs.viewer.options.WordsPageNumberLocation;
// ...

PdfViewOptions pdfOpt = new PdfViewOptions();
pdfOpt.getWordProcessingOptions().setPageNumberLocation(WordsPageNumberLocation.TOP_LEFT);

HtmlViewOptions htmlEmbeddedOpt = HtmlViewOptions.forEmbeddedResources();
htmlEmbeddedOpt.getWordProcessingOptions().setPageNumberLocation(WordsPageNumberLocation.BOTTOM_CENTER);

try (Viewer viewer = new Viewer("sample.docx"))
{
    viewer.view(pdfOpt);
    viewer.view(htmlEmbeddedOpt);
}

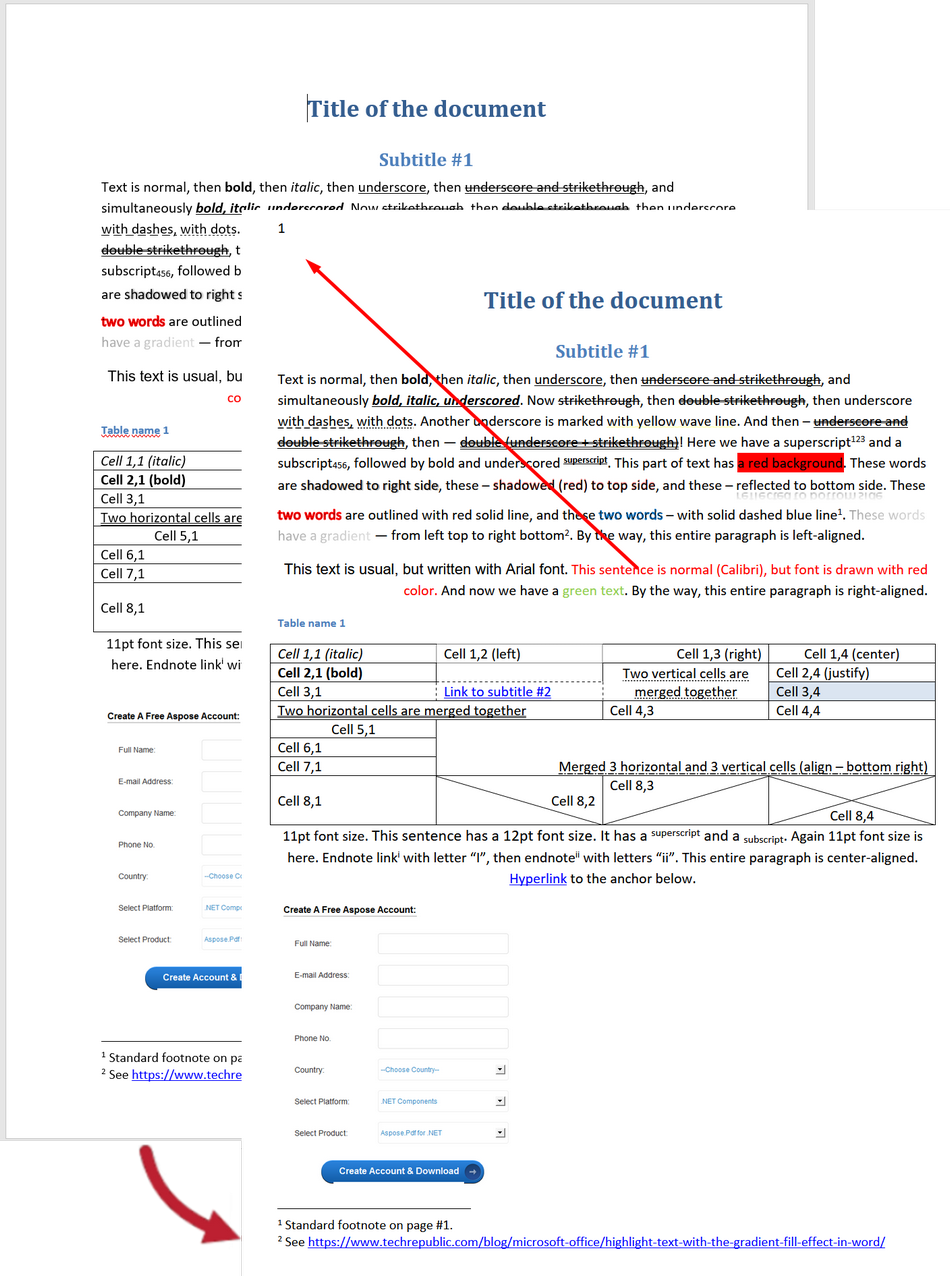

The following collage illustrates the result of adding page numbers to a loaded DOCX file during rendering to HTML:
