Extract text structure Leave feedback
On this page
GroupDocs.Parser provides the functionality to extract the text structure from documents by the getStructure method:
parser.getStructure(); // returns an org.w3c.dom.Document object or null
This method returns the XML representation of a document as a Java org.w3c.dom.Document object. You work with it through the standard Java DOM methods (getDocumentElement(), getChildNodes(), getNodeName(), getAttributes() and so on). A document has the following structure:
| Tag | Description |
|---|---|
| document | The root tag |
| section | Represents a section of the document. Depending on the document type, it can represent a worksheet, a slide and so on. Can contain the following attributes:
|
| p | Represents a text paragraph. Can contain the following attribute:
|
| ul | Represents an unordered list |
| ol | Represents an ordered list |
| li | Represents a list item |
| shape | Represents a shape object. |
| table | Represents a table |
| tr | Represents a table row |
| td | Represents a table cell. Can contain the following attributes:
|
Tags have the following relations:
- document tag can contain any number of section tags
- section tag can contain any number of p, ul, ol or table tags in any sequence
- table tag can contain any number of tr tags
- tr tag can contain any number of td tags
- td tag can contain one p tag

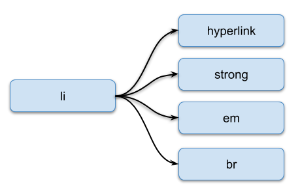

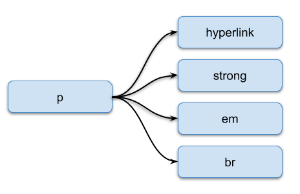

The p and li tags can contain hyperlink, strong, em tags and the value that represents a text:
| Tag | Description |
|---|---|
| hyperlink | Represents a hyperlink. Can contain the following attribute:
|
| strong | Represents a strong emphasis (bold text) |
| em | Represents a regular emphasis (italic text) |
| br | Represents a line break (empty tag) |
Word processing documents have a more complex table cell, and a paragraph can contain any number of shapes.

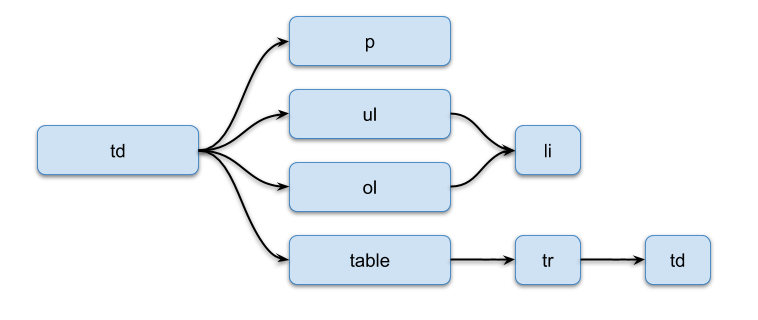

A table cell can contain any number of paragraphs, lists and tables:

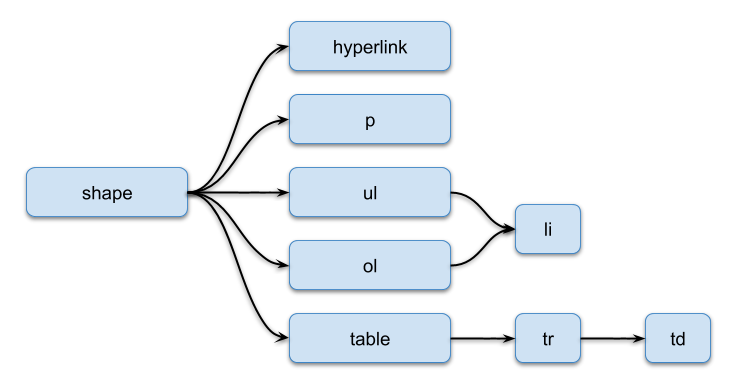

A shape can contain a single hyperlink (empty tag) for the entire shape and any number of paragraphs, lists or tables:
Presentations have a more complex table cell, and a section can contain any number of shapes.

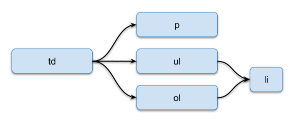

A table cell can contain any number of paragraphs or lists:

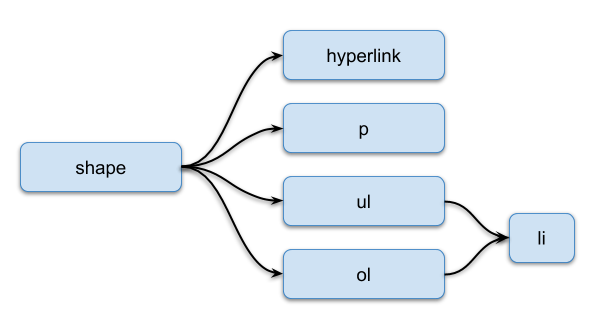

A shape can contain a single hyperlink (empty tag) for the entire shape and any number of paragraphs or lists:

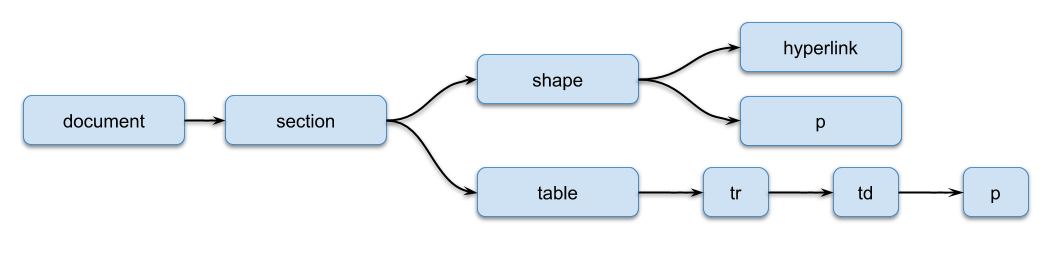

Spreadsheets have the following document structure:
It’s simpler than the others. A section can contain any number of shapes and only one table. A shape can contain a single hyperlink (empty tag) for the entire shape and any number of paragraphs.
Here are the steps to extract hyperlinks from the document:
- Instantiate the
Parserobject for the initial document; - Call the
getStructuremethod and obtain theorg.w3c.dom.Documentobject; - Check if
documentisn’tnull(text structure extraction is supported for the document); - Process the XML document.
The following example shows how to extract hyperlinks from the document:
const groupdocs = require('@groupdocs/groupdocs.parser');
// Recursively print the "link" attribute of all hyperlink nodes
function readNode(node) {
const nodes = node.getChildNodes();
for (let i = 0; i < nodes.getLength(); i++) {
const n = nodes.item(i);
if (n.getNodeName().toLowerCase() === 'hyperlink') {
const a = n.getAttributes().getNamedItem('link');
if (a != null) {
console.log(a.getNodeValue());
}
}
if (n.hasChildNodes()) {
readNode(n);
}
}
}
// Create an instance of Parser class
const parser = new groupdocs.Parser('Hyperlinks.docx');
try {
// Extract text structure as an XML document (org.w3c.dom.Document)
const document = parser.getStructure();
// Check if text structure extraction is supported
if (document == null) {
console.log("Text structure extraction isn't supported.");
} else {
// Read XML document
readNode(document.getDocumentElement());
}
} finally {
parser.close();
}
process.exit(0);

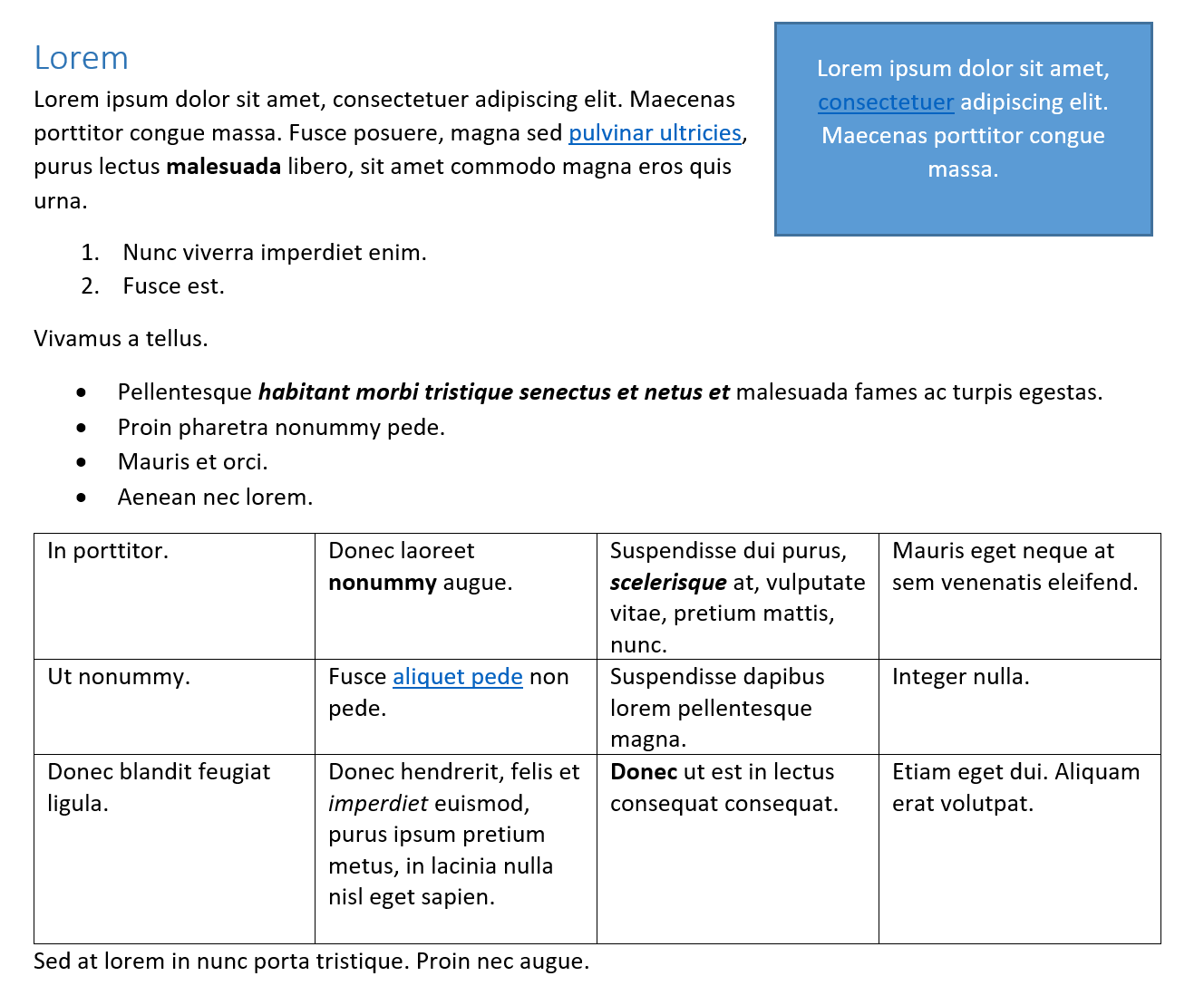

The following document:
has the following text structure:
<?xml version="1.0"?>
<document>
<section>
<p style="HEADING1">
<shape>
<p style="HEADING1">
Lorem ipsum dolor sit amet, <hyperlink link="google.com">consectetuer</hyperlink> adipiscing elit. Maecenas porttitor congue massa.
</p>
</shape>Lorem
</p>
<p>
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Maecenas porttitor congue massa. Fusce posuere, magna sed <hyperlink link="bing.com">pulvinar ultricies</hyperlink>, purus lectus <strong>malesuada</strong> libero, sit amet commodo magna eros quis urna.
</p>
<ol>
<li>Nunc viverra imperdiet enim. </li>
<li>Fusce est.</li>
</ol>
<p>Vivamus a tellus. </p>
<ul>
<li>
Pellentesque <em>
<strong>habitant morbi tristique senectus et netus et</strong>
</em> malesuada fames ac turpis egestas.
</li>
<li>Proin pharetra nonummy pede. </li>
<li>Mauris et orci. </li>
<li>Aenean nec lorem.</li>
</ul>
<table>
<tr>
<td rowIndex="0" columnIndex="0" rowSpan="1" columnSpan="1">
<p>In porttitor.</p>
</td>
<td rowIndex="0" columnIndex="1" rowSpan="1" columnSpan="1">
<p>
Donec laoreet <strong>nonummy</strong> augue.
</p>
</td>
<td rowIndex="0" columnIndex="2" rowSpan="1" columnSpan="1">
<p>
Suspendisse dui purus, <em>
<strong>scelerisque</strong>
</em> at, vulputate vitae, pretium mattis, nunc.
</p>
</td>
<td rowIndex="0" columnIndex="3" rowSpan="1" columnSpan="1">
<p>Mauris eget neque at sem venenatis eleifend. </p>
</td>
</tr>
<tr>
<td rowIndex="1" columnIndex="0" rowSpan="1" columnSpan="1">
<p>Ut nonummy.</p>
</td>
<td rowIndex="1" columnIndex="1" rowSpan="1" columnSpan="1">
<p>
Fusce <hyperlink link="google.com">aliquet pede</hyperlink> non pede.
</p>
</td>
<td rowIndex="1" columnIndex="2" rowSpan="1" columnSpan="1">
<p>Suspendisse dapibus lorem pellentesque magna.</p>
</td>
<td rowIndex="1" columnIndex="3" rowSpan="1" columnSpan="1">
<p>Integer nulla.</p>
</td>
</tr>
<tr>
<td rowIndex="2" columnIndex="0" rowSpan="3" columnSpan="1">
<p>Donec blandit feugiat ligula.</p>
</td>
<td rowIndex="4" columnIndex="1" rowSpan="1" columnSpan="1">
<p>
Donec hendrerit, felis et <em>imperdiet</em> euismod, purus ipsum pretium metus, in lacinia nulla nisl eget sapien.
</p>
</td>
<td rowIndex="2" columnIndex="2" rowSpan="3" columnSpan="1">
<p>
<strong>Donec</strong> ut est in lectus consequat consequat.
</p>
</td>
<td rowIndex="2" columnIndex="3" rowSpan="3" columnSpan="1">
<p>Etiam eget dui. Aliquam erat volutpat.</p>
</td>
</tr>
</table>
<p>Sed at lorem in nunc porta tristique. Proin nec augue.</p>
</section>
</document>
